The Doulton 4 Stage Ceramic Cartridge

Doulton Water Filter Ceramic Candle & Cartridge Technologies We want to take the mysteries out of the drinking water filtration. Ceramics, a natural water filter - Sterasyl micro-filter.

Doulton mines only the finest and purest kieselguhr or diatom earth often described as a silica-like sediment resulting from kiesel algae (one celled algae) deposited on the bottom of geological lakes and lagoons millions of years ago. This is the same material used in making the finest bone china (like of Royal Doulton) and numerous other applications.

The filter elements are produced using the latest ceramic techniques to provide a hollow porous ceramic which is fired at a temperature in excess of 1000°C. The chemically inert ceramic filter can be stored for eternity without losing its effectiveness.

Doulton ceramic filter particles from the water but leaves oxygen and mineral contents unchanged, which gives water it's spring-like freshness and wholesome taste. Pathogens of the most varied diseases which are reliably filtered from the water include; cholera, typhus, cryptosporidium, amoebic dysentery, ecoli, colibacillose or bilharzia, anthrax spores among others.

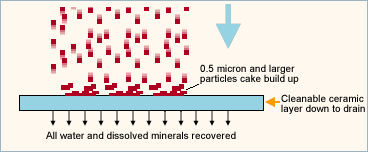

The porous structure of the filter allows the passage of water; particles and very small bacteria are held back at the filter surface. The result is clear, sterilized water.

Given favourable conditions, the accumulated bacteria could proliferate and grow unless prevented by some means.

To prevent this Doulton elements are manufactured with a small amount (about 0.07%) of pure silver (Ag) through-out the porous ceramic shell. Silver is a recognized bactericide, so when the bacteria comes into contact with the silver impregnated ceramic, their growth is inhibited. This self-sterilizing effect is known as the bacteriostatic effect .

Mechanical regeneration of the ceramic filter is simple. The topmost blocked layer can be removed with stiff brush or scouring pad (e.g. Scotch Brite®). This can be repeated many times before the filter has to be changed.

Silver, a nature's water purifier

Free silver ions (Ag+) have a toxic effect on micro-organisms even in relatively low concentrations. They have a highly fungicidal, bactericidal and algaecidel effect. Medical studies describe silver ions a catalyst that disable the enzymes that microorganisms depend on to "breathe".

In the presence of air (oxygen in water), metallic silver forms silver oxide, which also has a bactericidal effect due to its adequate solubility. The destruction of viruses, bacteria, moulds, spores and fungi through contact with silver objects is termed the oligodynamic effect . To primitive life forms, oligodynamic silver is as toxic as the most powerful chemical disinfectants. This, coupled with its relative harmlessness to animate life (i.e. mammals), gives oligodinamic silver great potential as a disinfectant.

The best and most environmentally-friendly silver based disinfectants are capable of rendering stored water potable for long period of time as in space stations.

The silver leach rate from the Doulton ceramic is very low and always well below the national recommended limits or equivalent to having a meal using silver cutlery.

Activated carbon as another natural adsorber

Doulton uses high quality carbon blends obtained from different raw materials such as lignite, bituminous coal and coconut shells. Active carbon is used for water treatment due to its adsorbing effect with respect to organic and health endangering chemicals.

Activated carbon surfaces are both hydrophobic and oleophilic ; that is, they “hate” water but “love” oil. When flow conditions are suitable, dissolved chemicals in water flowining through the carbon media “stick” to the carbon surface in a thin film while the water passes on. This process is call adsorption .

Substances affecting taste and odours such as chlorine, pesticides (lindane, DDT) and trihalogenmethanes (THMs) are removed by activated carbon. These substances are adsorbed on the large surface area of the active carbon. For visual purpose, one teaspoon of activated carbon have a surface area the size of a football field.

Doulton Ceramic Candles and Cartridges

Sterasyl membrane: (candle and cartridge form): Used for microbiological removal. The only ceramic element in the world to meet the stringent NSF antimony and arsenic extraction test featuring:

• >99.99% E.coli removal
• Tested with live Cryptosporidium cyst to 100% removal far exceeding EPA three log cyst reduction requirements
• 100% efficiency at 0.9 µm absolute (0.5 µm absolute ANSI standard)
• > 98% efficiency at 0.2 µm
• > 90% efficiency at 0.05 µm
• < 0.07 NTU turbidity reduction

Watch a video about doulton

Doulton manufactures many different ceramics for many companies. BelKraft only uses the best quality and most efficient cartridges they produce.

If you take the best 4 stage 'Full Spectrum' ceramic and put it in the best quality surgical steel housing you now have the best possible purifier.

PLUS = BEST

Questions & Answers about the Four Stage Ceramics
