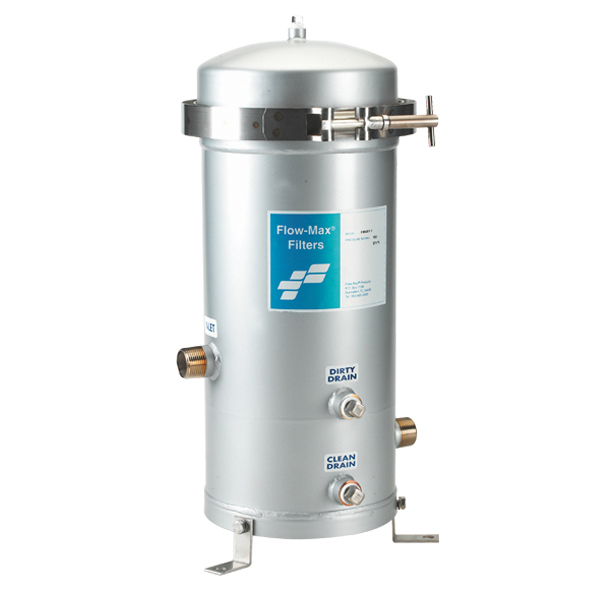

Flow-Max Filters

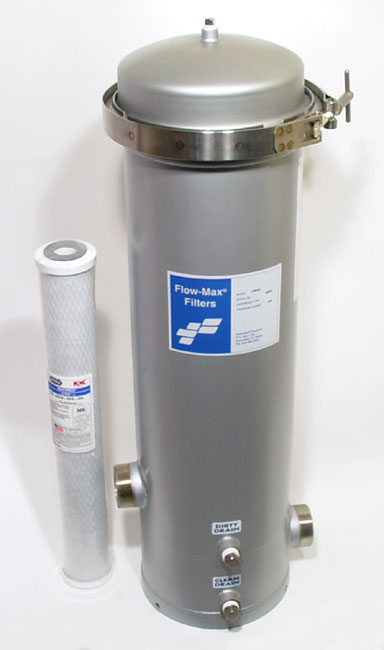

The ideal filter housings for optimum convenience and savings! Flow-Max- jumbo filters are designed to accept "jumbo" cartridges for easy installation and replacement.

Filter housings are constructed using 316L stainless steel, and are rated for pressures to 150 psi. Pipe fittings on single cartridge models are 2" MNPT, with pressure gauges installed on inlet and outlet fittings. Convenient, band clamp lid closure is easy, safe and secure. Protective poly coat over stainless steel is standard finish.

Electro-polishing is available by special order. Replacement cartridges are available in a wide range of micron ratings from 0.2 to 50 microns.

Features:

Housings accept "jumbo" cartridges for optimum convenience!
Heavy-duty stainless steel construction for durability
316L stainless steel for greater resistance to chemical attack

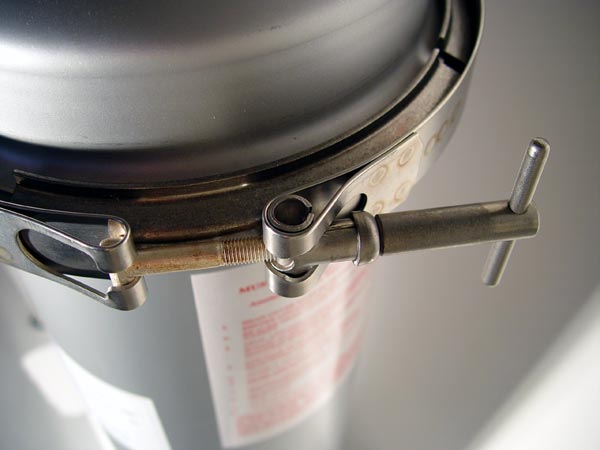

Band clamp lid closure is convenient, easy and secure
Pipe fittings are readily accessible for easy installation
Pressure gauges are installed on pipe fittings (single cartridge models)
Superior sealing provided by threaded compression cap & stand-off ring
Heavy duty mounting legs are standard
Electro-polishing is available by special order
Pressure ratings to 300 psi available
6 models available for a wide range of flow rates
Swing bolt & davit closure on 3, 5 and 8 cartridge models

Click HERE for more details and specifications on the housings

Click HERE for more details and specifications on the cartridges

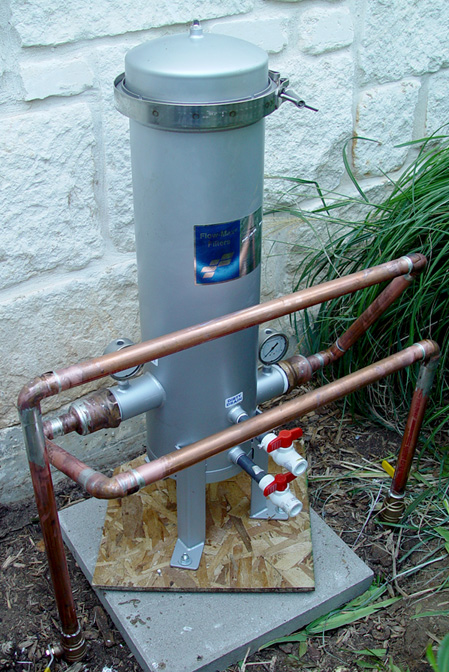

Ideal for many applications and easy to install.

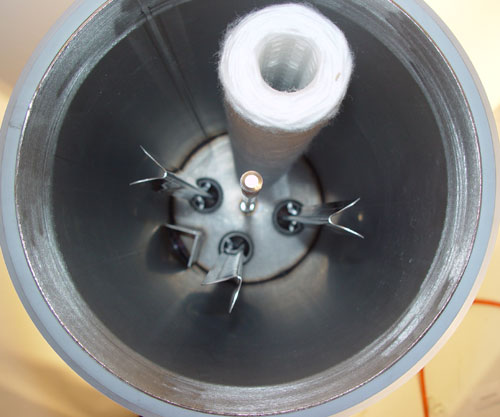

Simple to replace cartridges.

Six sizes to choose from
